Explosion-proof Cobot: Huayan Robotics Elfin-Ex series is an explosion-proof collaborative robot designed for hazardous environments, which has received national certification for explosion protection. It can significantly reduce operational risks.
Composite Explosion-proof Structure: Elfin-Ex adopts leak-compensated positive pressure explosion-proof system, ignition source medium isolation and multiple sealing structure design to achieve intrinsic safety.
Real-Time Pressure Monitoring System: Elfin-Ex features real-time monitoring of positive pressure gas, ensuring safety by preventing entry of explosive gases and dust with power-off protection.
A leak-compensated positive-pressure explosion-proof system with medium isolation of the ignitio n source is used for reliable sealing performance; the shell is sealed with multiple seals, thus realising an intrinsically safe, positive-pressure and other composite explosion-proof structure; equipped with an air pressure monitoring system for full process detection, reducing the risk of explosion to zero.
The robot is designed with a reliable and highly hermetic structure to achieve IP66 level of protection against water and dust.
Suitable for environments with high dust levels and liquid splashing.
No professional knowledge of explosion-proofing and programming is required, even if you have no basic knowledge you can easily get started; fast drag-and-drop operation, automatic programming, high intelligence.
Cost-effective Product
Virtually Maintenance-free
Low Consumables
High Yield, High Return
Elfin-EX explosion-proof cobots can replace workers, minimizing operational
risks. Featuring an IP66 protection rating, they are ideal for diverse petrochemical, painting, and
service applications.
The spraying robot arm efficiently and automatically applies coatings to
parts, while the 6-axis robot arm provides flexibility and precision.
 |
 |
 |
 |
 |
 |

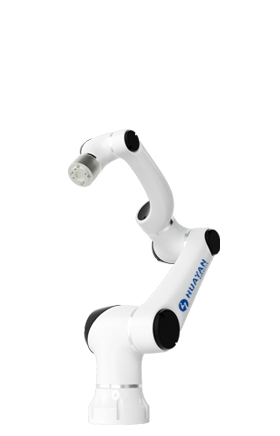

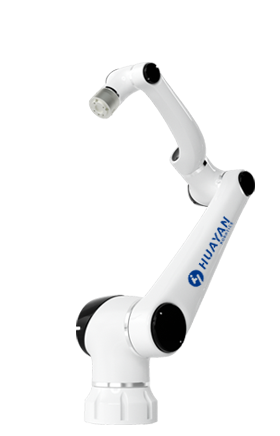

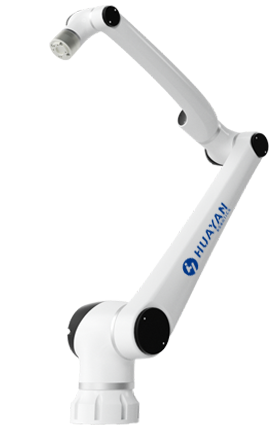

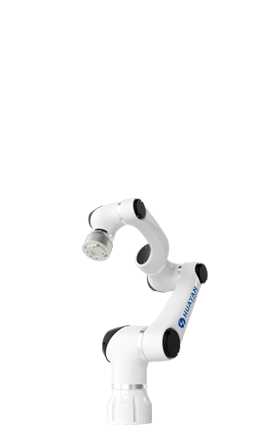

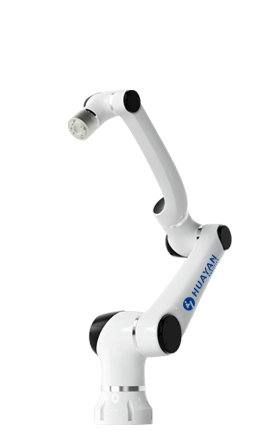

| Model | E05F | E10F | E10F-L | E12F | E15F |
| Weight | 25kg | 43kg | 45kg | 72kg | 60kg |
| Payload | 7kg | 12kg | 10kg | 12kg | 18kg |
| Reach | 800mm | 1000mm | 1300mm | 1800mm | 1300mm |
|
Power consumption
|
180W typical application |
350W typical application |
350W typical application |
600W typical application |
600W typical application |
| Joint Range |
J1/4/6 ±360° J5 ±180° |
J1/4/6 ±360° J5 ±180° |
J1/4/6 ±360° J5 ±180° |
J1/4/6 ±360° J5 ±180° |
J1/4/6 ±360° J5 ±180° |
| Joint Speed | J1-J4: 180°/s J5-J6: 200°/s |
J1-J2: 100°/s J3-J4: 150°/s J5-J6: 180°/s |
J1-J2: 100°/s J3-J4: 150°/s J5-J6: 180°/s |
J1-J2: 80°/s J3-J4: 120°/s J5-J6: 150°/s |
J1-J2: 80°/s J3-J4: 120°/s J5-J6: 150°/s |
|
Maximum Tool Speed (Effective payload status) |
3m/s | 2m/s | 2.5m/s | 2.5m/s | 2m/s |
|
Repeatability (Effective payload, rated speed status) |
±0.02mm | ±0.03mm | ±0.03mm | ±0.05mm | ±0.05mm |
| Explosion-proof IP Classifification |
Ex pxb IIC T6 Gb / Ex pxb IIIC T80℃ Db
|
||||
| Degree of freedom | 6 | ||||
| Control box I/O port | Digital input: 16, digital output: 16, analogue input: 2, analogue output: 2 | ||||
| Communication | TCP/IP ，ModbusTCP ，Profinet（Optional）， Ethernet/IP（Optional） | ||||
| Programming | Graphical programming, remote call interface | ||||
| IP Classification | IP66 | ||||
| Collaborative operation | 10 advanced security configuration functions | ||||
| Main material | Aluminium alloy | ||||
| Working Temperature | -20 ~ 40°C | ||||
| Power input | 200-240V AC, 50-60Hz | ||||
| Cable | Maximum length customizable 15-20m | ||||
Economic Explosion-Proof Cobot |
||
|
Explosion-proof robot arm body Built-in pressure sensor, positive pressure explosion-proof construction
|

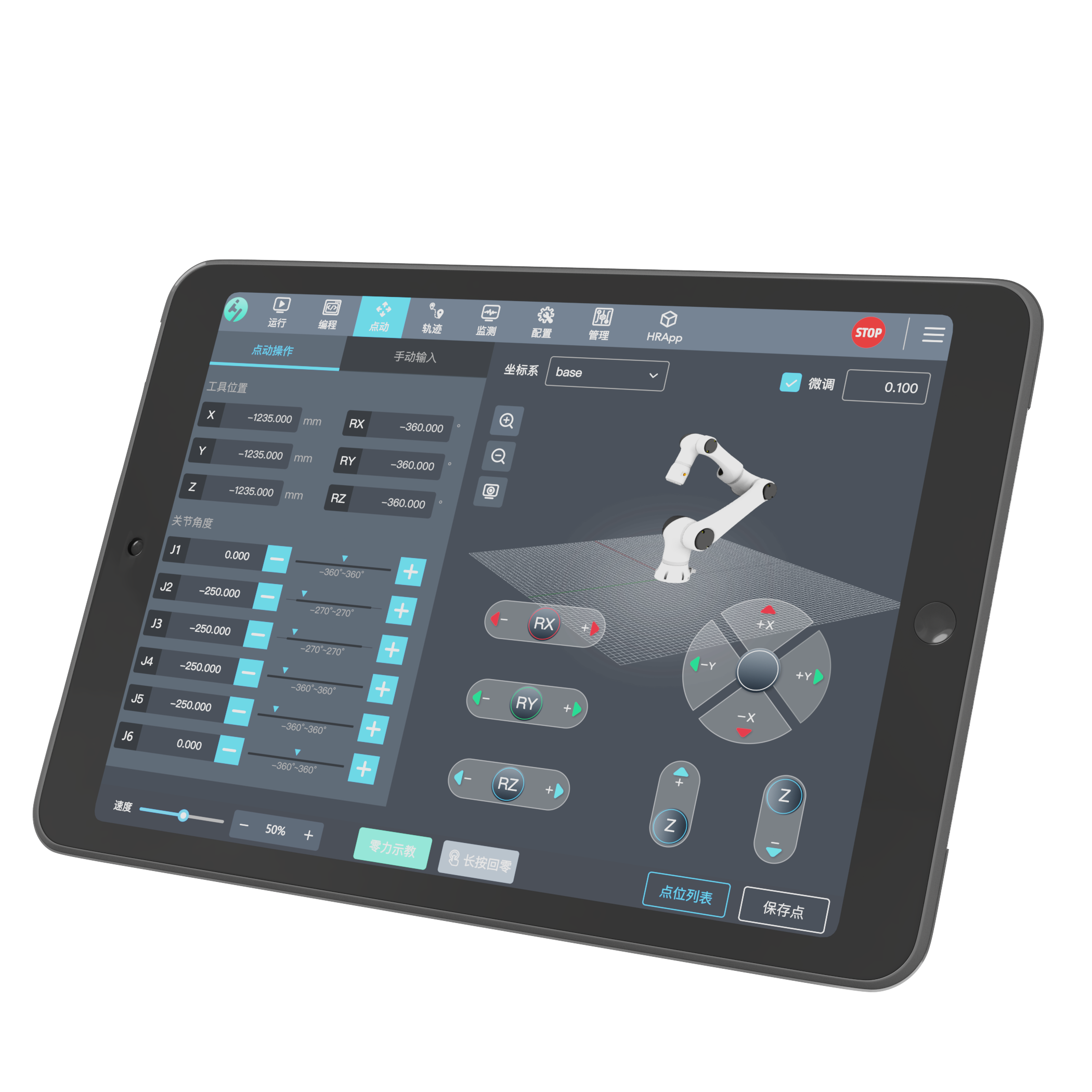

Economic version of electric control box Wireless router and audible and visual alarms, with wireless ipad operation, body pressure monitoring and power failure protection in abnormal conditions
|

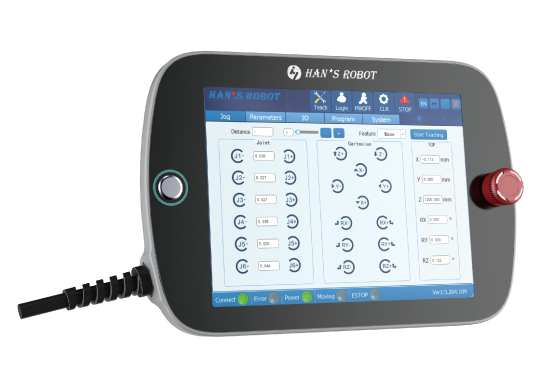

Explosion-proof Teach Pendant
|
| The Economic version of electric control box must be placed in a safe environment, and the robot arm and control box must be debugged in a non-explosion-proof environment. The maximum length of the connection cable between the robot arm and electric control box is 20 meters, and the maximum wireless communication distance of the explosion-proof ipad is 50 meters. | ||
| Standard Explosion-Proof Cobot | ||
|
Explosion-proof robot arm Built-in pressure sensor, positive pressure explosion-proof construction
|
Economic version of electric control box Wireless router and audible and visual alarms, with wireless ipad operation, body pressure monitoring and power failure protection in abnormal conditions
|
Explosion-proof Teach Pendant |
|
Can be used in explosive environments.
|
||
| Configuration Instruction | Standard version: Both the robot arm and electronic control box have positive pressure explosion-proof function, can be placed in explosive hazardous areas, to meet the requirements of explosion-proof certification, and have explosion-proof certificates. Economic version: The robot arm has positive pressure explosion-proof function, the electronic control box does not have explosion-proof function, and should be placed in the safe area; it meets the requirements of explosion-proof certification, and has an explosion-proof certificate. Customized version: Customized development of explosion-proof function according to customers' requirements, to meet the special requirements of customers. |
Economic Version of Electric Control Box（Optional） |
|
|---|---|
|
Dimensions（L*W*H）
|
600x350x655(500+155)(mm) |
|
Weight
|
50KG |
| I/O Interface | 16 DI (8 DI configurable), 16 DO (8 DO configurable), 2 A1, 2 AO |
| I/O Power Supply | 24V/1.5A( Internal Power Supply) or 3A(External Power Supply) |
| Communication | Modbus TCP,Ethernet TCP/lP |
| Power Supply | AC220V 50-60HZ |
| IP Classification | IP66 |
|
Working Temperature
|
-20~40℃
|
| Working Humidity | 90% Relative Humidity (non-condensing) |

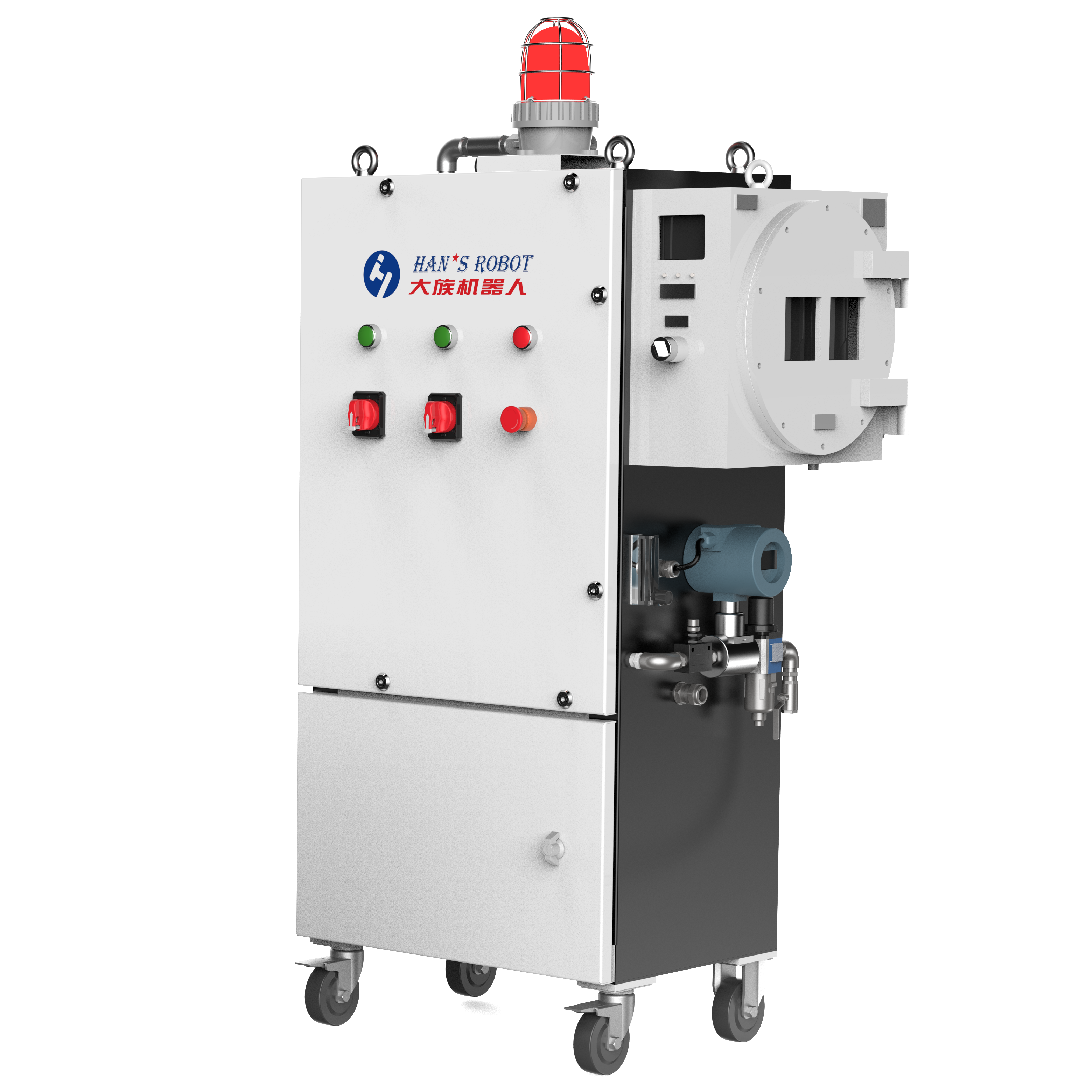

Explosion-proof Electric Control Box（Optional） |
|
|---|---|
|
Dimensions（L*W*H） |
800x520x1600(mm) |
|
Weight |
100KG |
| I/O Interface | 16 DI (8 DI configurable), 16 DO (8 DO configurable), 2 A1, 2 AO |
| I/O Power Supply | 24V/1.5A( Internal Power Supply) or 3A(External Power Supply) |
| Communication | Modbus TCP,Ethernet TCP/lP |
| Power Supply | AC220V 50-60HZ |
|
Explosion-proof IP Classification
|
Ex pxb llC T6 Gb/Ex pxb lllC T80℃ Db
|
| IP Classification | IP66 |
|
Working Temperature |
-20~40℃ |
| Working Humidity | 90% Relative Humidity (non-condensing) |
